Pacific Fire and Marine
Pre-Engineered System

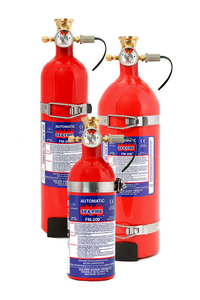

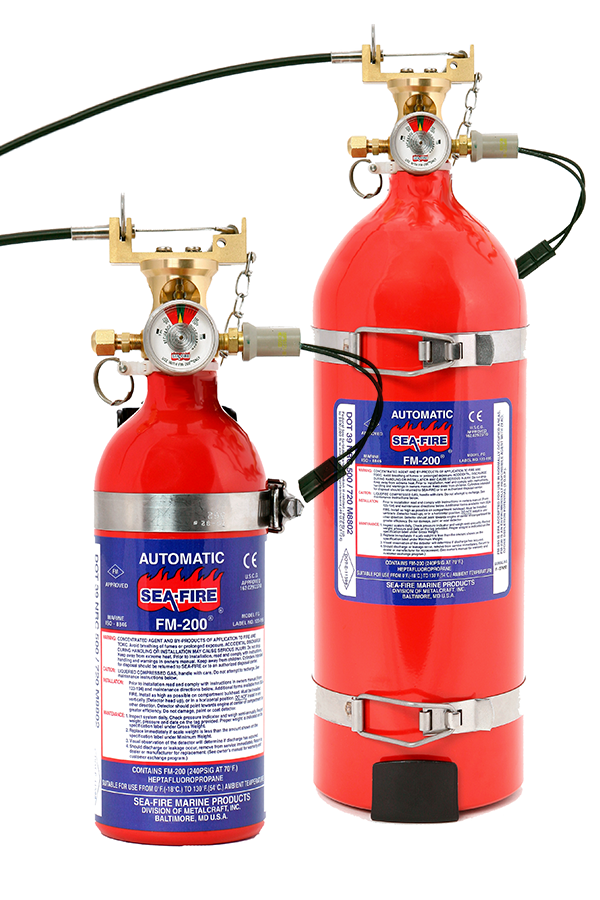

Sea-Fire FG Series Automatic Release "All Models"

In stock

Sea-Fire

FG25A

$188.00 $289.00

Sea fire is the leader in Marine fire suppression systems for your boat. Pacific fire and marine can outfit your boat whether it be a private pleasure craft or commercial vessel, with the right fire safety equipment.

Ten standard automatic model sizes available.

Marine approved in sizes from 25 cubic feet (0.71 cubic meters) up to 240 cubic feet (6.8 cubic meters) of engine compartment volume. FG models feature light-weight compact corrosion resistant aluminum cylinders for easy installation. See size chart in the main description.

Benefits and Features

  • Non-Rechargeable DOT 39 cylinder
  • Automatic discharge only (heat actuated)
  • Pressure Guage
  • Pressure switch (system supervision)
  • Protective guard discharge nozzle
  • Mounting bracket included
  • Indicator light and bezel included
  • Installation, operation and maintenance manual

Categories:
Pre-Engineered, Products
Tags:
Automatic Discharge, FG, FG100, FG100A, Sea-Fire, Sea-Fire FM-200

Models and Range

Models

Gas

Type

Range

Dimensions

Weight

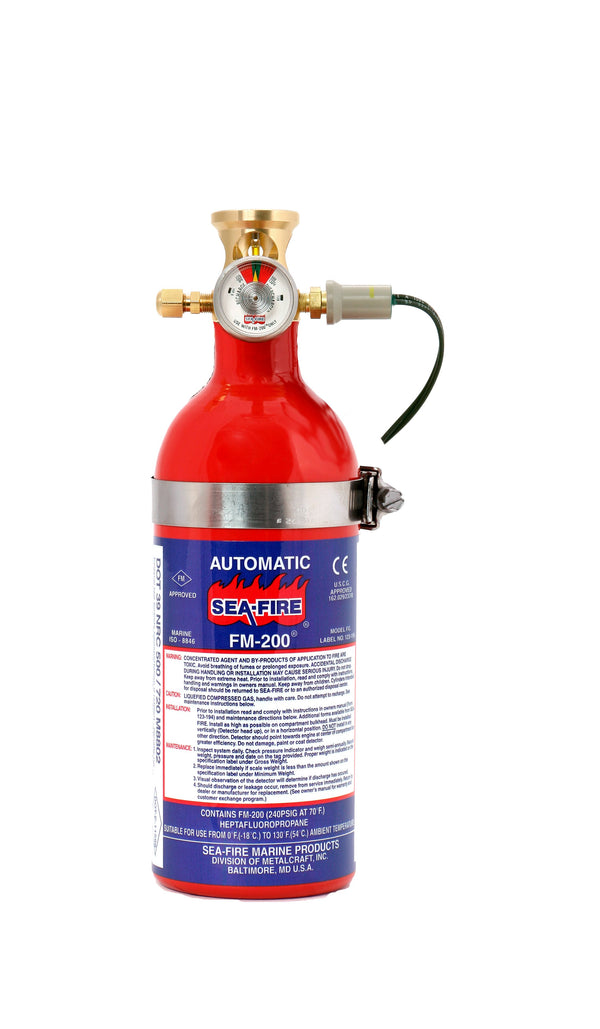

FG25A

FM-200

Automatic

25 cubic feet

2.5" x 9.0"

2.6 lbs

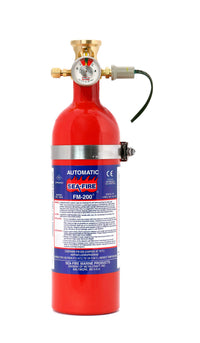

FG50A

FM-200

Automatic

50 cubic feet

3.1" x 12.0"

5.4 lbs

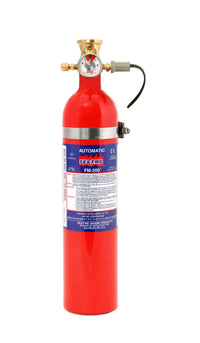

FG75A

FM-200

Automatic

75 cubic feet

3.1" x 15.0"

6.8 lbs

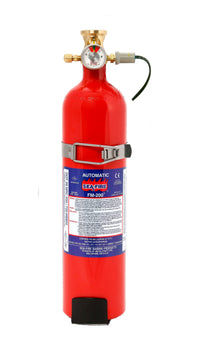

FG100A

FM-200

Automatic

100 cubic feet

3.5" x 15.0"

9.2 lbs

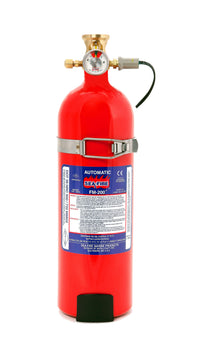

FG125A

FM-200

Automatic

125 cubic feet

4.1" x 16.0"

11.0 lbs

FG150A

FM-200

Automatic

150 cubic feet

5.1" x 16.0"

12.7 lbs

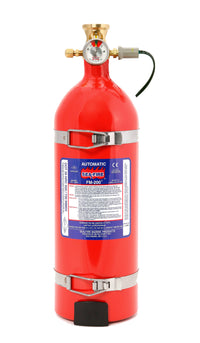

FG175A

FM-200

Automatic

175 cubic feet

5.1" x 16.0"

15.7 lbs

FG200A

FM-200

Automatic

200 cubic feet

5.1" x 16.0"

16.8 lbs

FG225A

FM-200

Automatic

225 cubic feet

5.1" x 16.0"

18.2 lbs

FG240A

FM-200

Automatic

240 cubic feet

5.1" x 16.0"

18.8 lbs


About The Gas

FM-200® systems reach extinguishing levels in 10 seconds or less, stopping ordinary combustible, electrical, and flammable liquid fires before they cause significant damage. That's the fastest fire protection available, period. When the fire is extinguished this quickly, it means less damage, lower repair costs, and an extra margin of safety for people. It also means less downtime and disruption of business.

    Marine fire safety fixed fire protection links and resources

    Marine Fire safety is a critical component to ensuring your safety while out on the water.  Having the appropriate Fire extinguisher and proper fixed fire safety equipment on board could make a big difference in the outcome of a catastrophic event.  Make sure that your boat has the appropriate fire suppression system on board including an engine room automatic fire suppression system, the correct amount of fire extinguishers, Life preservers, flares, radio communication devices, EPIRBS and other safety devices.  The coast guard will only respond if they know you are in danger.

    Some boats will have an automatic fire suppression system in the engine room which is not the right size.  Ensure that the engine room has been appropriately measured L x W x H= V and install the correct size fire system designed by the manufacturer.  Pre-engineered fixed fire systems are intended to protect by the amount of gas that is in the bottle and the range from 25 cu ft to 1500 cu ft.

    The waters are abundant, and a lot of the time you are the only one out there so be sure that you are prepared.  Ensuring that all your systems are current is critical when you need them the most.  Below are some links that should help guide you making sure you have the right equipment on board.

    Pacific Fire and Marine is an authorized dealer in marine fire safety equipment for your vessel.  Give us a call if you have any questions about what your boat needs and we will help you.
